Research Article
Identifying Socio-Technical Risks in Open-Source
Software for Scholarly Communications: Tools, Metrics, and Opportunities for
Libraries to Support Sustainable Development
Pierre Lasou
Scholarly Communications
Librarian
Library of Université Laval
Québec City, Quebec, Canada
Email: pierre.lasou@bibl.ulaval.ca
Tomasz Neugebauer
Digital Projects &
Systems Development Librarian
Concordia University Library
Montreal, Quebec, Canada
Email: tomasz.neugebauer@concordia.ca
Pamela Carson
Web Services Librarian
Concordia University Library
Montreal, Quebec, Canada
Email: pamela.carson@concordia.ca
Received: 18 Sept. 2024 Accepted: 15 Jan. 2025
2025 Lasou, Neugebauer, and Carson. This
is an Open Access article distributed under the terms of the Creative Commons‐Attribution‐Noncommercial‐Share Alike License 4.0
International (http://creativecommons.org/licenses/by-nc-sa/4.0/),
which permits unrestricted use, distribution, and reproduction in any medium,
provided the original work is properly attributed, not used for commercial
purposes, and, if transformed, the resulting work is redistributed under the
same or similar license to this one.
Data Availability: Lasou, P., & Neugebauer, T.
(2024a). Community patterns of scholarly communication open
source software generated by YOSHI [dataset]. Borealis. https://doi.org/10.5683/SP3/4MEDXO
Data Availability: Lasou, P., &
Neugebauer, T. (2024b). Community smells detection on scholarly communication open source software using csDetector [dataset].
Borealis. https://doi.org/10.5683/SP3/34MYPI
DOI: 10.18438/eblip30630
Abstract
Objective – In the interest
of helping libraries make evidence based decisions about open-source software
(OSS), the objective of this research is to establish whether tools that
automate the evaluation of OSS project communities could be used specifically
on scholarly communications OSS (SC-OSS) projects to provide actionable
insights for libraries to guide strategic decision making and corrective
interventions.
Methods – Seven OSS
project communities were selected for evaluation, chosen from widely used
scholarly communications software applications used in Canada for repositories,
journal hosting, and archives. While all aspects of OSS projects may be
evaluated at the project or network/ecosystem level, addressing the actors,
software, or orchestration (Linåker et al., 2022), community evaluation that
looks at the interaction patterns between project contributors is the practical
focus of this research paper since there are multiple human factors that
librarians who may not be software developers can impact. We identified a community
analysis tool called csDetector (Almarimi et al., 2021) from the software
engineering literature. This tool was chosen based on two main criteria: 1)
ability to analyze data from GitHub repositories (the code sharing platform
used by all selected SC-OSS projects) and 2) capacity to automatically produce
results without manual intervention. Since some of the seven OSS projects were
spread across multiple GitHub repositories, a total of 11 datasets from GitHub,
each containing three months’ worth of data, were analyzed using csDetector.
Results
– The results produced by csDetector are interesting
though not without limitations. The tool is complex and requires the user to
have software development skills to use it effectively. It lacked sufficient
documentation, which made interpreting the results challenging. The analysis

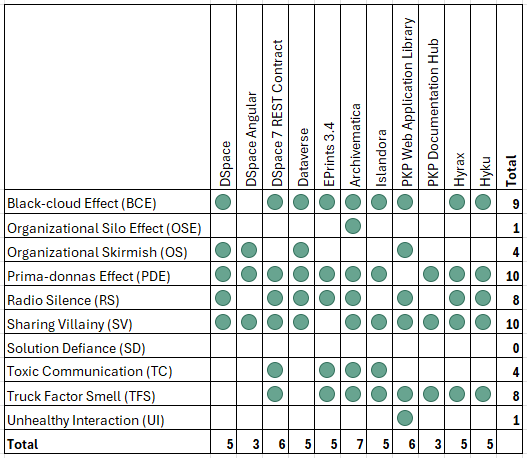

from csDetector, which identifies community smells (i.e., types of
organizational and social dysfunction within software projects [Tamburri et al,
2015, 2021a]), suggests that these SC-OSS project communities are experiencing
knowledge sharing difficulties, weak collaboration practices, or other member
interaction dysfunctions that can eventually permanently affect community
health. Having a software tool that can take metrics from GitHub and detect
community smells is a valuable way to illustrate problems in the project’s
community and point the way to remedying dysfunction.
Conclusion – While the OSS
community analysis tool csDetector currently presents several hurdles before it
can be used, and results generated come with caveats, it can be part of an
approach to support evidence based decision-making pertaining to SC-OSS in
libraries. The information provided can be worth monitoring (especially social
network metrics such as centrality) and their results, particularly for
community smells, identify problems that may be addressed by non-developers.
Awareness of community smells in OSS can provide a deeper understanding of OSS
sustainability as it provides a language to identify suboptimal social
dynamics.
Introduction
As the open
scholarship movement gains momentum (Martin, 2022) as governments commit to
working in the open (Government of Canada, 2021) and government-funded research
outputs are mandated to be openly available (Nelson, 2022), it continues to be
important for academic libraries to be evaluating, adopting, and investing in
open infrastructure for scholarly communications (Bilder et al., 2020; Cousijn
et al., 2021). Key components for open infrastructure include open repositories:
digital libraries of scholarly outputs, which, for the most part, are built
using open-source software (OSS). There has long been an affinity between
libraries and OSS (Chudnov, 1999; Corrado, 2005, 2021, 2023; Engard, 2010;
Lease Morgan, 2002; Rhyno, 2004; Singh, 2020; Skog, 2023; Thacker and Knutson,
2015). Although OSS has many benefits over commercial software such as added
control, and the opportunity to impact development, it also comes with risks.
Unfortunately, several OSS systems used in libraries have become obsolete
(Breeding, 2017; Gray, 2023). Rosen and Grogg (2021) found that project
sustainability was a factor considered over financial advantages or user
benefits when making decisions about OSS. Engard (2010) and Baker (2020) noted
the importance of paying attention to an OSS project’s community health and
activity as it is linked to the project’s sustainability. Involvement in OSS
enables libraries to shape software development, collaborate with others, and
stay competitive with proprietary options (Colt, 2023; Singh, 2020; Thacker et
al., 2014).
The academic
library community is advocating for OSS, emphasizing the need for financial and
social contributions to sustain open-source digital infrastructure (Lewis,
2017; Martin, 2018; McIlwain, 2023; Skog, 2023). While some argue libraries do
not contribute enough (Askey, 2008), research shows they do participate,
although not universally (Thacker and Knutson, 2015). Thacker and Knutson
(2015), in their survey completed by 77 ARL-member libraries, found that
libraries contribute code/developer time, money, hosting, testing, and
requirements to OSS projects used in libraries, mainly scholarly
communications-related software like institutional repositories, digital
preservation, and digital asset management software, and to a lesser extent to
OSS not primarily used for scholarly communications (such as link resolvers,
streaming media, and course reserves). OSS evaluation in academic libraries is
still largely at the stage of comparing advertised features (Collister, 2023;
Guimont et al., 2023; Open Society Institute, 2024; Thacker et al., 2014),
which does not address how OSS differs from commercial software in that its
users can affect its evolution by contributing resources, particularly to OSS
communities.
Baker (2020)
rated journal management OSS using QualiPSo’s Open Maturity Model (OMM), which
includes community evaluation questions about developer and user activity
through a manual process. Colt (2023) explored automated methods for assessing
library OSS, particularly communities, noting that, while GitHub provides
access to some metrics, the Cauldron platform could be used to generate models
from these metrics to indicate OSS project health and sustainability. While
Baker (2020) and Colt (2023) introduced software engineering methods for
evaluating OSS in libraries, this paper explores the software engineering
literature for further tools and techniques, particularly focusing on
evaluating OSS communities. The aim of this paper is to see if there is a way
to easily identify opportunities for libraries to contribute to the health and
growth of the open-source communities that build and maintain OSS critical for
scholarly communications.
Literature Review
OSS Project Health and Sustainability
As organizations
increasingly rely on OSS for digital infrastructure, they must plan for risk
management and resource allocation. Monitoring OSS project health can help
assess sustainability and guide resource investment (Germonprez et al., 2018).
Link and Germonprez (2018) discovered through engaged scholarship and
interviews that there was no single defined process for assessing OSS project
health given the number of health-related factors, and then-current processes
could be “unstructured, vague, subjective, and relying on intuition” (p. 3).
The participants in their study struggled with interpreting meaning from
metrics because context was so important for accurate interpretation. Goggins
et al. (2021a) noted widespread “useful but haphazard assessments” (p. 106) for
OSS as an impetus for creating standardized metrics in the Community Health
Analytics in Open Source Software (CHAOSS) project.
Techniques and metrics for assessing OSS project health are abundant. Linåker
et al. (2022) proposed a framework with 107 health characteristics divided into
three categories and 15 themes, distinguishing between project-level and
network-level analyses.
Quantitative Analysis of Trace
Data
OSS projects and
project management from issue tracking to communications leave digital
artifacts—trace data—that are visible and analyzable on both the open web
(e.g., on GitHub) or by members of the project’s community online. Trace
ethnography, a methodology that examines documents and documentary traces, is
suited to learning about distributed sociotechnical systems such as OSS
communities (Geiger & Ribes, 2011). Trace data from repositories, issue
trackers, and communication tools are usually what researchers analyze to
ascertain OSS project health through network modelling or other statistical
analysis techniques, including, more recently, machine learning. Although, some
argue that trace data alone are insufficient (Geiger & Ribes, 2011;
Germonprez et al., 2018; Goggins et al., 2021b; Link & Germonprez, 2018).
Quantitative studies of OSS projects and communities which analyze trace data
and networks are abundant in the software engineering literature (Almarimi et
al., 2020, 2021, 2023; Aman et al., 2017; Çetin & Tüzün, 2022; Dey &
Woods, 2022; Ferreira et al., 2019; McClean et al., 2021; Onoue et al., 2016;
Oriol et al., 2023; Palomba & Tamburri, 2021; Raman et al., 2020; Tamburri
et al., 2019c, 2021a, 2023; van Meijel, 2021; Voria et al., 2022; Yang et al.,
2023).
Qualitative and Mixed Methods Research
Some studies combined
qualitative and quantitative methods together, particularly to validate
findings. For example, Avelino et al. (2016) used an algorithm on GitHub data
to estimate the “truck factor” (which measures knowledge concentration and
resilience to developer turnover) for software projects then checked findings
by surveying developers involved in the projects. Tamburri et al. (2013a) used
grounded theory with a systematic literature review to define a set of OSS
communities. Based on these community definitions, Tamburri et al. (2019c)
created YOSHI, a tool used to quantitatively analyze GitHub trace data and map
a project to a community pattern. As part of the foundation of the CHAOSS
project, multiple research methods were used to understand OSS communities (CHAOSS,
n.d.-a; Germonprez et al., 2018; Goggins et al., 2021b). The results of this
extensive multi-year mixed-methods research informed the creation of metrics
and models for CHAOSS (CHAOSS, n. d.-c).
Importance of Community Analysis
While
OSS project health may be monitored by analyzing everything from source code
quality and complexity to software popularity and project activity, there is an
area of research about community health: an analysis of the community members’
communication and culture as well as the overall community structure, as an
indicator of project sustainability.
Nagappan et al.,
in their influential 2008 paper, found that statistical models predicting
software’s proneness to failure were more accurate when these models included
social and organizational metrics in addition to other technical
software-oriented metrics. Bettenburg and Hassan (2010) also found that adding
social data could increase the effectiveness of a software defect prediction
model previously based on only source code and process measures, showing that
the traces of social interactions are valuable data for determining software
health.
OSS development,
given its reliance on collaboration, is inherently a dynamic socio-technical
phenomenon (Ducheneaut, 2005). Cataldo et al. (2008) stated that a software
development project is a socio-technical system, requiring congruence between
the social and technical aspects for success, and found that their models were
more accurate when they included measures of congruence between the technical
aspects and social aspects. Palomba et al. (2018) determined that community
dynamics impact source code quality issues. Tamburri et al. (2021b), in a
systematic literature review to determine a grounded theory of success and
failure factors for software engineering projects, determined that people- and
process-related factors impact project sustainability.
Community Patterns
The structure
and the resulting communication patterns of a community developing software is
reflected in the software itself (Conway, 1968; Kwan et al., 2012). Different
community structures, or community patterns, are linked with different effects
on the project’s health (Tamburri et al., 2023). Tamburri et al. (2013b) used a
grounded theory approach to analyze software engineering research papers and
found 13 different organizational social structures and divided them into
metatypes of community, network, group, and team. Tamburri et al. (2019c) then
created a systematic approach to identify community attributes in GitHub
project data and classify project communities automatically into community
patterns (defined as “sets of known organisational and social structure types
and characteristics with measurable core attributes” (p. 1369) with a software
they created called YOSHI (which stands for “Yielding Open-Source Health
Information”). YOSHI, later updated by van Meijel (2021) who created YOSHI 2,
examined six key characteristics: community structure, geodispersion,
longevity, engagement, formality, and cohesion.
Community Health Affects Software Quality
There are two
main lines of inquiry on OSS community health and its impact on software
quality and sustainability. The first line of inquiry is about generating
standard metrics and models about OSS projects and project ecosystems,
including community health (Link & Germonprez, 2018; Goggins et al.,
2021b). The other line of inquiry uses social network analysis and diagnoses
community smells (i.e., types of organizational and social dysfunction within
software projects) (Tamburri et al., 2015, 2021a) leading to the creation of
multiple tools that detect community smells such as CodeFace4Smells (Tamburri
et al., 2021a), Bus Factor Explorer (Klimov et al., 2023), Kaiaulu (Paradis et
al., 2024; Paradis & Kazman, 2022), and ones that use machine learning such
as csDetector (Almarimi et al., 2021) and CADOCS (Voria et al., 2022).
First Line of Inquiry: CHAOSS: Metrics and Models for Understanding Project (and Community) Health
The CHAOSS
project is a current attempt to produce standard metrics and models to indicate
project and community health. Informed by findings from multi-year engaged
field studies (Germonprez et al., 2018; Goggins et al., 2021b), there are 89
CHAOSS metrics used in 17 metrics models using data about the project,
including community-related data. CHAOSS (n.d.-c) metrics and metrics models,
when visualized in dashboard services built with either GrimoireLab
(Gonzalez-Barahona et al., 2022) or Augur are meant to inform project community
managers and OSS program managers in organizations (Goggins et al., 2021b).
GrimoireLab can use data from more than 30 sources; Augur uses data only from
GitHub or GitLab repositories or organizations, but Augur can import thousands
of datasets from GitHub or GitLab repositories or organizations.
Colt (2023)
analyzed DSpace SC-OSS using Cauldron (a dashboard for GrimoireLab) to generate
CHAOSS Starter Project Health model metrics. However, not all metrics are
available in Cauldron, and some would need to be measured qualitatively to
complete a model. For example, the Community Welcomingness model contains 14
metrics, some of which can be gathered from trace data (e.g., whether there is
a Code of Conduct in GitHub), but the Inclusive Leadership metric in this model
requires qualitative research. In fact, qualitative data is required by
multiple CHAOSS metrics (and models), increasing the time and work required.
Second Line of Inquiry:
Community Smells: Social Network Analysis and Dysfunction Diagnosis
The second line of inquiry emerges from the concept
of “social debt” in software engineering, defined as “the additional cost
occurring when strained social and organisational interactions get in the way
of smooth software development and operation” (Tamburri et al., 2015, p. 1).
Given that OSS projects are socio-technical phenomena (Cataldo et al., 2008;
Ducheneaut, 2005; Nagappan et al., 2008), the social, or community, health of
OSS projects is a contributing factor to project sustainability. Tamburri et
al. (2013a) posited that social debt within a software project is incurred by
detrimental socio-technical decisions (e.g., decisions influencing both human
and technical aspects). Social debt is important, though challenging, to
identify and monitor but key to understanding project and community health.
Tamburri et al.
(2015) defined a set of nine community smells by using an exploratory case
study combined with grounded theory. They defined community smells as “sets of
organisational and social circumstances with implicit causal relations . . . if
reiterated over time cause social debt, in the form of mistrust, delays,
uninformed or miscommunicated architectural decision-making,” (p. 7). By
providing a language for “hunches” about pervasive OSS project problems,
Tamburri et al. (2015) provided a framework for naming the problems and mapped
a set of mitigation strategies. Consequences of unaddressed community smells
include employee turnover (Tamburri et al., 2015), bad software architecture
decisions (Tamburri et al., 2019a), instability within the project’s community,
and even project collapse (Tamburri et al., 2020).
Tamburri et al.
(2021a), in a mixed methods study, operationalized the detection of four
community smells. They adapted an existing tool, CodeFace (Joblin et al.,
2015), that identified communities and generated graphs of developer
interactions and communications from GitHub and mailing list trace data. They
created the network metrics and methods needed for detecting the community
smells and made a new tool called CodeFace4Smells. Sixty OSS project
communities were analyzed, with developers confirming the findings through
surveys.
Once a set of
community smells was defined by Tamburri et al. (2015), other research projects
attempted to create software tools to automate the identification of these
community smells. According to Paradis et al. (2024), these tools have two main
tasks: first, to create graph representations using the trace data, and second,
to compute the community smell metrics from these graphs.
Some projects
address specific community challenges, such as the truck factor risk, which
measures knowledge concentration and resilience to developer turnover (Avelino
et al., 2016). This risk assessment is complicated due to the lack of
standardized metrics (Ricca et al., 2011) and varying algorithm accuracy for
determining truck factor and identifying key developers (Ferreira et al.,
2019). Tools like those developed by Cosentino et al. (2015) and Klimov et al.
(2023) help calculate and visualize the truck factor, while Çetin and Tüzün
(2022) created an algorithm to identify key developers and assess knowledge
distribution, considering various developer activities beyond code commits.
Palomba and
Tamburri (2021) used the same set of 60 OSS project communities used by
Tamburri et al. (2021a) but used a machine learning approach to predict
community smells using metrics about socio-technical congruence,
communicability, and turnover. Almarimi et al. (2020, 2021, 2023) also used a
machine learning approach, including sentiment analysis, and built a software
tool called csDetector that detects a project’s community smells based on
GitHub trace data. csDetector detects the most community smells of all the
currently available tools. Community
smells are explained in more detail in the Results section of this paper.
Relationship
Between Community Patterns and Community Smells
De Stefano et
al. (2020), in a preliminary study, used the YOSHI software to detect community
patterns in 25 OSS project communities, then used CodeFace4Smells to extract a
list of community smells and finally used machine learning (specifically,
associated rule mining) to detect which community patterns and smells
co-occurred. van Meijel (2021), expanding on De Stefano et al.’s (2020) work,
adapted the YOSHI software in an attempt to find relationships between
community patterns and community smells. For example, both studies found that

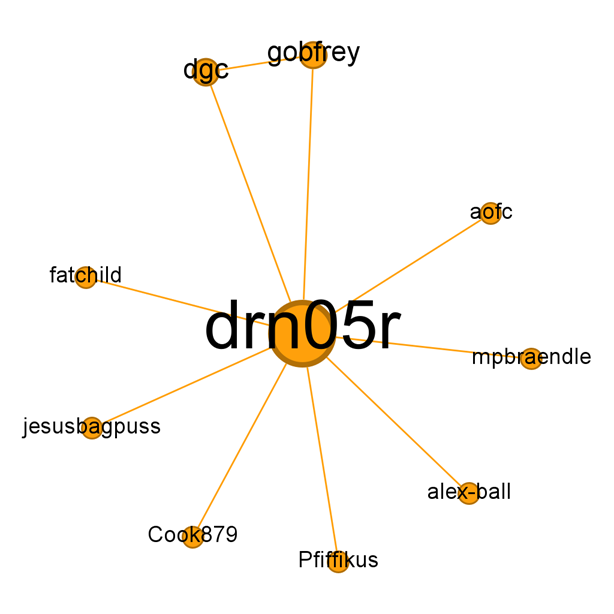

“formal group” community patterns were linked with the “bottleneck” (when a
single member of the community is frequently involved in community
interactions) and “lone wolf effect” (when there are defiant contributors who
work in isolation from other contributors) community smells. However, the
generalizability of these studies is limited. De Stefano et al. (2020) relied solely
on the Apriori machine learning algorithm and did not survey community members
to confirm the findings. van Meijel (2021) surveyed community members to
confirm the results of the YOSHI 2 analysis, but respondents disagreed with the
results.
Aims
In the interest
of helping libraries make evidence based decisions about open-source software
(OSS), the objective of this research is to establish whether tools that
automate the evaluation of OSS project communities could be used specifically
on scholarly communications OSS (SC-OSS) projects to provide actionable
insights for libraries to guide strategic decision making and corrective
interventions.
Research Questions
RQ1: Which tools
are appropriate for evaluating SC-OSS? What conclusions about community type
and organizational characteristics can be made about these SC-OSS communities
using existing OSS evaluation tools? Are these communities affected by any
community smells? These questions are answered in the Literature Review and
Results sections.
RQ2: The
existing tools used in this study are producing results based on quantitative
and qualitative criteria. What are the main assumptions, definitions, and
dependencies used by these tools? These questions are answered in the
Methodology and Results sections.
RQ3: Can such
tools be useful for libraries to make strategic decisions related to their
participation in SC-OSS communities? Answers will be provided in the Discussion
section.
Methods
SC-OSS provides
a unique opportunity for software evaluation, given that OSS is the primary
type of software used in scholarly communications (CARL Open Repositories
Working Group, 2022) and data generated during the SC-OSS project’s lifespan
are readily available. While multiple approaches and tools exist for assessing
aspects of OSS projects, the aspects evaluated in this research paper are the
community structure and community dysfunction (i.e., community smells). We
initially identified two tools that can analyze OSS in the software engineering
literature that were suitable for automated SC-OSS evaluation: YOSHI 2 for
community types and csDetector for community smells. These two tools were used
to generate and analyze datasets from 11 GitHub repositories representing
three-month snapshots of community activity in seven SC-OSS projects. The
results from YOSHI 2 did not provide any actionable insights, simply a
characterization of the project’s community type based on its members'
interactions (e.g., most projects were communities of practice, and some were
informal communities). Knowing a project’s community type is a step toward
gauging socio-technical congruence because it describes the project community’s
structure and dynamics (i.e., the social aspect) but without analyzing the
technical aspect (e.g., software modularity and complexity, among others).
However, some of the congruence measures used by Cataldo et al. (2008), namely
geographic dispersion and patterns in communication, overlap with measures used
to identify community smells. Finally, YOSHI 2 and csDetector results are too
different to be complementary and any attempts to link specific community types
to community smells and confirm findings qualitatively have not been completed
(De Stefano et al., 2020; van Meijel, 2021). For this reason, YOSHI 2 data were
not included in our results, but remain publicly available (Lasou &
Neugebauer, 2024a).
The rationale
for setting a maximum of three months’ worth of data comes from Traag et al.
(2013), as cited in Tamburri et al. (2019a), who determined that this timespan
was a significant scale for effective analysis of community structures.
SC-OSS Project Selection
In
libraries, OSS is used to support three main categories of scholarly
communication services:
1.
institutional
repositories and research data repositories,
2.
journal hosting, and
3.
archiving.
This
research paper focuses on SC-OSS used by academic libraries in Canada (see
Table 1). The institutional repository software used in Canada is mainly DSpace
(33%, n=31), EPrints (21%, n=19), and Islandora (18%, n=17) (CARL Open
Repositories Working Group, 2022). Borealis (https://borealisdata.ca/),
the Canadian research data repository, is based on Dataverse software. The most
popular OSS used by Canadian academic libraries for journal hosting and
publishing is Open Journal Systems (OJS) (Betz et al., 2023). Finally, OSS for
archiving is less commonly used, but Archivematica is the major software used
in this category (Barnes et al., 2022).
Table 1
SC-OSS Used by Academic Libraries in Canada
and Selected for Evaluation
|
Provider |
Software |
Service type |
GitHub repository
link |
|
Artefactual |
Archivematica |
Archiving |
|
|
University
of Southampton |
EPrints
3.4 |
Repository |
|
|
Islandora
Foundation |
Islandora |
Repository |
|
|
LYRASIS |
DSpace |
Repository |
|
|
LYRASIS |
DSpace-Angular |
Repository |
|
|
LYRASIS |
DSpace
7 REST Contract |
Repository |
|
|
Samvera
Community |
Hyku,
the Hydra-in-a-Box Repository Application |
Repository |
|
|
Samvera
Community |
Hyrax:
A Digital Repository Framework |
Repository |
|
|
Institute for Quantitative Social Science (IQSS) |
Dataverse |
Repository |
|
|
Public
Knowledge Project (PKP) |
PKP
Documentation Hub |
Journal
hosting |
|
|
Public
Knowledge Project (PKP) |
PKP
Web Application Library |
Journal
hosting |
To analyze
SC-OSS communities, the focus of this research paper was to use existing tools
that automatically collect and process data from GitHub rather than use
frameworks that would require manual or qualitative processing and analysis
(Andrade & Saraiva, 2017; Linåker et al., 2022). While all aspects of OSS
projects may be evaluated at the project or network level, addressing the
actors, software, or orchestration (Linåker et al., 2022), community
evaluation, looking at the interaction patterns between project contributors,
is the focus of this research paper since there are multiple human factors that
librarians who may not be software developers can impact. The identification of
community smells (i.e., community dysfunction) was of particular interest since
naming a problem is the first step in its remediation, and, according to Labianca
and Brass (2006), “negative relationships may have greater power than positive
relationships to explain workplace outcomes” (p. 596).
Community
Smell Detection
In
their systematic review on community smells, Caballero-Espinosa et al. (2023)
documented 30 different smells. Of those 30, nine were found to be widespread
(Tamburri et al., 2015).
Several
automated tools exist to identify community smells, and the number of community smells each tool can determine varies widely
(see Table 2 below). For this research paper, csDetector was selected to do the
community smell analysis since it detects the greatest number of community
smells (up to 10). The developers of csDetector describe threats to the
validity of the model that is used to detect community smells as well as the
mitigation measures that they took (Almarimi et al., 2020). For example, the
model training relies on a source of truth that is based on the authors’ manual
identification of community smells in 74 projects, which is prone to a certain degree
of error. To mitigate, the authors relied on established definitions and
guidelines, excluding projects for which there was no total agreement by the
three authors (Almarimi et al., 2020). The authors also validated the model
using bootstrapping statistical methods (a technique that repeatedly resamples
data) to assess, among other measures, accuracy, precision, and recall for each
smell, averaging at 0.86, 0.87, and 0.82, respectively (Almarimi et al., 2021).
Table
2
Number of Community Smells Detected by Existing Automated Tools in the Software
Engineering Research Literature
|
Tool |
Community smells
detected |
Source code |
Reference |
|
CodeFace4Smells |
|
(Tamburri
et al., 2021a) |
|
|
TruckFactor |
|
(Ferreira
et al., 2019) |
|
|
csDetector |
|
(Almarimi
et al., 2021) |
|
|
Kaiaulu |
|
(Paradis
& Kazman, 2022) |
Results
Our goal is to
explain how csDetector works, as well as the results it provides about
community smells, to determine whether csDetector could be used to provide
insights about SC-OSS project community characteristics, not to single out any
SC-OSS project or community in particular.
csDetector
The csDetector
software was built by Almarimi et al. (2021). It detects 10 community smells
(see Table 2). To detect smells, it uses an extended genetic programming-based
ensemble classifier chain to process exclusively GitHub data (Almarimi et al.,
2023). csDetector analyzes the content of users’ comments and can determine the
tone (positive or negative). This process is called sentiment analysis and is
conducted on issue comments, as well as commit and pull request comments.
Results are anonymized as specified by Almarimi et al. (2023).
Running
the Software
csDetector is
open-source research prototype software written in Python, supported in a
limited way by the development efforts of individual researchers (Nuri22,
2021). Other than an update to the licence and README file in 2024, the
project’s last code commits date back to 2021. The csDetector README file
suggests that one way to run the software is to use the precompiled standalone
executable file for Windows. Unfortunately, this method returned a runtime
error; however, by using the second method described in the README file (“by
the command line”), we could successfully run the software.[1] We
followed the instructions for the installation of the requirements and executed
the devNetwork Python script. We needed to modify the GitHub GraphQL API
request settings in the Python code so that only 10 pull requests and issues at
a time were requested, as 100 (the default setting) was causing the API to
fail. One of the parameters is a GitHub authorization token that can be
generated from GitHub, giving access to the API. csDetector also relies on
ConvoKit[2]
for parsing texts and politeness strategies used in conversations. ConvoKit, in
turn, requires spaCy and its “en_core_web_sm”.[3]
SentiStrength is used by csDetector for classifying positive and negative
sentiments in short texts. We used the models (one for each smell) that are
supplied by default. Users can switch out the models by replacing files in a
“models” directory.
We limited the
data extraction from GitHub to a three-month period between May 3, 2023, and
August 1, 2023, to limit the complexity of the analysis so that csDetector can
complete within a reasonable amount of computation time for each repository.
Another modification that was sometimes necessary was the default branch, which
was hard coded in csDetector to “master,” but in our case, many of the
repositories were using “main.”
The Samvera Hyku
repository caused an issue in that, unexpectedly, it included a release with
no authors/contributors (the GitHub API returns the value of “None”). The
code needed to be modified so that this data would not break and interrupt the
scripts with an error.
The two PKP
repositories (Documentation Hub and Web Application Library), as well as the
DSpace REST Contract, although not using releases, were processed without
error. csDetector skipped 11 release-related metrics (such as
NumberReleaseAuthors, NumberReleases, and ReleaseAuthorCount_count).
As DSpace REST
Contract, PKP Documentation Hub, and Samvera Hyku do not use tags, three tag
metrics were skipped for those repositories (TagCommitCount_count,
TagCommitCount_mean, and TagCommitCount_stdev).
Community Smells
For
each OSS assessed, csDetector results consist of a set of 190 metrics (e.g.,
number of authors, community centrality, pull request, commits and issue count,
release count) grouped in nine different metric dimensions from which smells
are inferred:
1.
communication,
2.
community,
3.
developer contributions,
4.
formality,
5.
geographic dispersion,
6.
sentiment analysis,
7.
social network analysis,
8.
truck number, and
9.
community members.
All
the community smells and the respective repositories affected by them are shown
in Figure 1.
csDetector
also produces four graphs: 1) pull requests, 2) issues and pull request
centrality, 3) issue graph, and 4) commit centrality, and a CSV file containing
all metrics used. The community smells are only displayed directly on the
command prompt windows. All results for metrics and graphs used for our studies
have been publicly shared (Lasou & Neugebauer, 2024b).
One
smell did not affect any SC-OSS communities: Solution Defiance. Its absence
suggests that community members' backgrounds and cultural levels are homogeneous,
thus avoiding division or conflicting opinion (Tamburri et al., 2015).
Figure
1
Community smells in SC-OSS detected by csDetector
using three months of GitHub activity data (May 3 to August 1, 2023). Community
smells are explained in more detail below.
Two
smells, Toxic Communication (TC) and Unhealthy Interaction (UI), strongly
connected to the tone of the interactions between members affected some SC-OSS
communities. They were detected by csDetector’s sentiment analysis. Toxic
Communication (TC) was diagnosed in four of the 11 communities. In communities
affected by TC, communications are charged with negativity and there are many
conflictual exchanges among members that can lead to developer stress or
burnout (Almarimi et al., 2021). Only one community was affected by the
Unhealthy Interaction (UI) smell (PKP Web Application Library). This smell
occurs when communication exchanges between developers or community members are
often very short, delayed, or spread over a long period of time (Raman et al.,
2020).
Archivematica
was the only community where the Organizational Silo Effect (OSE) smell was
found. This smell signals communication problems and a high decoupling of tasks
where members are isolated from one another and interaction among them seems
limited. OSE can cause time waste, insignificant collaboration, and code
duplication (Caballero-Espinosa et al., 2023).
The
Organizational Skirmish (OS) smell affected four repositories. Communities
facing OS deal with miscommunication or misunderstanding between members due to
different expertise levels or organizational changes that can lead to delays
(Tamburri et al., 2015).
Among
the 10 smells, those affecting most SC-OSS communities were: Black-cloud
Effect, (BCE), Prima-donnas Effect (PDE), Sharing Villainy (SV), Radio Silence
(RS), and Truck Factor Smell (TFS).
Black-Cloud Effect (BCE)
Black-cloud
Effect (BCE) was detected in nine of the 11 SC-OSS projects. BCE is strongly
influenced by metrics from the social network analysis, developer contributions,
and communication dimensions. The BCE emerges from a situation where community
members have few opportunities to meet and share their experiences and, at the
same time, few members can help close the knowledge gap between members. The
resulting effects are that messages need to be repeated many times or are
interpreted in the wrong way, also described as a “‘black-cloud’ of confusing
back-and-forth messages [that] were constantly obfuscating reality” (Tamburri
et al., 2015, p. 9).
Different
strategies can be used to correct BCE smells. One of the most efficient
solutions is to create an actively maintained and implemented communication
plan to help structure communications between members (Catolino et al., 2020).
Prima-Donnas Effect (PDE)
The
Prima-Donnas Effect (PDE) affected 10 of the 11 OSS communities. The most
influential csDetector dimensions in PDE smells detection are social network
analysis and sentiment analysis metrics. Communities affected by PDE will not
readily welcome contributions or proposals from new members or other members.
It is caused by inertia, both at the organizational level and code or software
feature level, and may lead, for certain members, to non-inclusive behaviours
such as condescension. PDE is also a sign of poor communication and
collaboration practices among members (Caballero-Espinosa et al., 2023).
Strategies to mitigate the PDE include community-based contingency planning,
social wikis, and culture conveyor roles (Tamburri et al., 2015).
Sharing Villainy (SV)
Sharing
Villainy (SV) was found in 10 of the 11 OSS communities. Like the BCE, it is
caused by a lack of knowledge sharing opportunities (e.g., face-to-face
meetings) causing the information shared among members to be outdated,
unconfirmed, or wrong (Almarimi et al., 2023).
Mitigation
strategies include the creation of a social wiki or ambassador roles to
disseminate a homogeneous organizational culture (Tamburri et al., 2015).
Radio Silence (RS)
Radio
Silence (RS) was detected in eight out of the 11 SC-OSS analyzed. csDetector’s
social network analysis dimension is the most influential for detecting RS. RS,
also known as the bottleneck smell, reflects a formal organizational problem:
the community is insufficiently structured and relies upon highly formal procedures
maintained or controlled by few individual community members. For example, one
member may interpose in every formal interaction and object to any initiatives
to introduce changes (Tamburri et al., 2021a).
The
most efficient strategies to resolve RS are to reinforce community cohesion by
doing specific collective activities (e.g., brainstorming), practicing
mentoring, and engaging with members to solve communication problems (Catolino
et al., 2020).
Truck Factor Smell (TFS)
Eight
out of the 11 SC-OSS analyzed were affected by the Truck Factor Smell (TFS).
csDetector has a specific set of metrics to detect TFS based on issues,
commits, and pull request interactions. TFS (also referred to as “bus factor”)
is an indicator used to determine the resiliency of a project if it encounters
developer turnover, specifically, the number of software developers who would
need to be “hit by a bus” to cause the project to stall (Jabrayilzade et al.,
2022, p. 98).
TFS
is a sign that knowledge critical to the project’s sustainability is
concentrated among few members. If there is developer turnover, knowledge will
be lost, and the project will be at risk.
As
part of its social network analysis, csDetector produces network graphs related
to members’ activities on GitHub. Figure 2 shows the Pull Request (PR)
centrality graph for the EPrints software. From all the graphs generated as
part of our studies, EPrints exemplifies TFS in the most unambiguous way. Any
interactions on PR during the three-month period analyzed are centralized on
only one member.
Figure
2
EPrints 3.4 csDetector pull request centrality
graph visualization. The fact that all nodes connect to one central node
demonstrates Truck Factor Smell (TFS). csDetector generates this data using
GraphML File Format and a visualization of the graph in PDF. The above is the
GraphML data from csDetector, visualized using Gephi - the Open Graph Viz
Platform (Bastian, Heymann & Jacomy (2009).[4]
Truck factor, however, is a
controversial indicator. Having too many developers involved in a project is
also risky. The more people involved, the more communication paths required,
adding complexity to communication patterns and potentially introducing
miscommunication and resulting code problems (Nagappan et al., 2008). Avelino
et al. (2016) created an approach to analyze 133 popular projects in GitHub to
determine the truck factor for each, and later surveyed developers to confirm
findings. Interestingly, they found that most systems had (in 2016) a truck
factor of 1 (34%, n=45) or 2 (31%, n=42) including the very popular OSS
projects, Clojure and Elasticsearch.
Overall,
SC-OSS communities, from the three-month analysis period, seemed to have two
main problems. The first problem was limited knowledge sharing either due to a
lack of effective communication (BCE) or knowledge hoarding among members (SV).
The second problem was weak collaboration practices possibly due to overly
detailed and overwhelmingly formal procedures (RS) leading to few opportunities
for onboarding newcomers and limiting the generation of new ideas (PDE).
Discussion
While
the results generated by csDetector are interesting, this tool has limitations
in the context of evaluating SC-OSS for academic libraries. Software
development skills are required to run csDetector. Documentation is sparse.
While some documentation about metrics is provided in an article about the
first release (Almarimi et al., 2020, table 10), more than 50 metrics described
in the GitHub repository (Nuri22, 2021) cannot be matched easily with the 190
metrics generated in the results. No information exists on the correlation of
metrics and smells, nor the thresholds used.
Despite
the challenges of using csDetector, this software can provide results worth
monitoring, highlighting problems that are social in nature. The automated
analysis of GitHub data and the use of metrics and machine learning models is
also promising. The concept of community smells provides a useful vocabulary
for defining OSS community dysfunctions and, therefore, solutions. For example,
the Black Cloud Effect smell indicates weak user interaction and trouble with
knowledge sharing and can be addressed by building a specific communication
plan.
The
data used and processed by csDetector opens a completely new dimension of indicators
or characteristics. From the metrics used by csDetector, Almarimi et al. (2023)
have emphasized that some metrics are more influential than others to detect
community smells. The most significant in this regard are the “standard
deviation of the number of developers per time zone and per community, and the
social network betweenness, closeness and density centrality and the ratio of
issues with negative sentiments, anger words and polite comments in PR [pull
request] and issue discussions” (p. 2). Much of the data processed by tools
like csDetector is originating from code sharing platforms. Some data helps
determine how organized the community is (e.g., is the repository using
milestones? Tags to flag issues?). Activities that circle around three GitHub
features (issues, commits, and pull requests) can give a sense of engagement of
community members and be used as criteria to measure OSS activities and
vitality.
Many
of the tools uncovered in our literature review, including csDetector, cannot
be considered sustainable. In this regard, a project like CHAOSS (n. d.-a)
looks much more promising. The community health indicators defined for this
project were community based and the software used to produce the data,
GrimoireLab, is open source (Gonzalez-Barahona et al., 2022).
The
CHAOSS project has focused on building indicators to measure OSS community
health and sustainability (CHAOSS, n. d.-a; Goggins et al., 2021b). However,
like csDetector, it relies heavily on metrics based on software sharing platforms
like GitHub. CHAOSS also contains more qualitative metrics that are similar in
their objectives to csDetector sentiment analysis. For example, the CHAOSS,
Psychological Safety, and Burnout models appear to align with two situations
that widespread community smells, like Toxic Communication (TC), can cause
within the communities we assessed. There is much overlap between CHAOSS
metrics and csDetector, especially those focusing on community activities.
However, CHAOSS also includes metrics beyond GitHub that are absent from
csDetector: Documentation Accessibility, Discoverability and Usability. For all
these reasons, CHAOSS seems to be more exhaustive for analyzing community
health.
Using
the CHAOSS Starter Project Health Model on the SC-OSS DSpace, designed to
quickly assess the health of an OSS community, Colt (2023) demonstrated that
metrics can be useful for validating or challenging perceptions about a project
and for helping decision-makers determine if a specific OSS needs support.
With
carefully selected and curated metrics, CHAOSS can generate lots of data. The
real challenge is to determine the thresholds of each metric (e.g., how many
days must an Issue Response Time be to be too much?) used to measure and
determine specific OSS community health.
Limitations
The datasets and the methods used in our study have
limitations. The repository selection was based on our experience as scholarly
communication practitioners in Canada. There are others OSS used by libraries
that would have been worth including, for example, for digital asset
management: Omeka, or other journal publishing
platforms such as Janeway. However, our
goal was not to focus on a specific community but to determine the specificity
of the results generated by csDetector.
Our
assessment of OSS communities has been conducted over a brief period (three
months). And we also voluntarily limited some configurations in part due to
performance issues (i.e., limit the analysis to 100 comments per issue and pull
requests). A longer analysis or temporal analysis (activities on a longer run
or at different moments in time), sometimes pointed out as relevant to really
have a sense of communities (Cánovas Izquierdo & Cabot, 2022; McClean et
al., 2021), was out of the scope of our study.
The
tools themselves have their own limitations. Only one specific GitHub branch
can be processed. OSS can have multiple branches on which the community is
active depending on software versions (i.e., OJS, EPrints). Moreover, only one
GitHub repository at a time can be assessed, but a specific community can have
multiple GitHub repositories (i.e., DSpace has three, two for developments
DSpace and DSpace Angular and one for technical documentation for the REST
API). This may prevent csDetector from providing a whole picture of a given
community. In addition, the accuracy of tools such as csDetector are a function
of the reliability of their natural language processing dependencies such as
SentiStrength, ConvoKit, spaCy and its en_core_web model, in the specific context
of GitHub data. Using these tools for analyzing issues and comments on GitHub
can be effective, but there are specific considerations and potential
limitations to keep in mind. GitHub comments and issues include domain-specific
text and technical language, code snippets and domain jargon that might not be
well represented in the training or lexical data of these tools. Although the
authors of csDetector perform validation (accuracy, precision, recall, F1, AUC)
of the training models used for smell detection resulting in relatively high
average measures, the models ultimately rely on a source of truth that is based
on the manual identification of community smells, which is prone to a certain
degree of error. To mitigate, the authors of csDetector relied on inter-indexer
reliability and established definitions and guidelines.
To
predict community smells, csDetector relies only on GitHub data and do not use
data from other platforms where non-programming activities occur (mailing
lists, chat software like Slack or Mattermost, wikis). Cánovas Izquierdo and
Cabot (2022) insist on the importance of non-programming activities in OSS
communities, even suggesting that these activities could play a significant
role for its sustainability. Based on GitHub data they define and analyze
specific roles activities (developer, reviewer, merger, reporter, commenter,
reactor). OSS community members tend to play multiple roles (Tatham, 2010).
Community members intervene in various aspects of the OSS project they are
involved in. The LYRASIS 2021 Open Source Software
Report also highlighted that libraries are more inclined to allocate staff time
for non-technical tasks (governance meetings, community feedback, or user
testing) (Rosen & Grogg, 2021).
The
analysis is also limited to the single project and does not consider the
software dependencies or the network around the project. For example, thousands
of websites and other software systems used OpenSSL, the ubiquitous OSS used
for cryptography and secure communication. When the Heartbleed security bug in
OpenSSL was discovered, it had a huge impact on OSS project health worldwide.
This risk would not have been discovered through a trace data analysis of a
single project’s GitHub repository and the community smells affecting OpenSSL
(mainly, and arguably, truck factor) would not have been identified. Goggins et
al. (2021a) argue that both the project and its ecosystem need to be analyzed
to generate a complete picture of project health.
Linåker
et al. (2022) concluded that it is important not to analyze an OSS project
separate from its ecosystem and that a project’s software dependencies and
links to other projects should be evaluated.
Also,
analyzing GitHub trace data, although faster than a qualitative study, has been
criticized by Goggins et al. (2021b) who stated that ongoing engagement with
OSS projects over time provides better health and sustainability indicators.
Geiger and Ribes (2011) argue that to understand trace data, researchers must
be immersed in the group and actively investigate “otherwise backgrounded
actors, software, and data” in tandem (p. 6).
Future Research
We
did not validate the tools we used or seek to confirm their results with the
scholarly communication communities we assessed. To investigate further SC-OSS
communities, it would be relevant to conduct a qualitative analysis on each
community to determine if concepts of community smells or community types are
known and how they may be used to ensure OSS sustainability. This secondary
qualitative analysis would serve as an additional test of the validity of the
csDetector smell detection models, and potentially an expansion of its training
dataset that would include software repositories specific to the scholarly
communications domain.
A
significant part of OSS communities' activities is not captured through GitHub
and would need more research, especially to assess interactions occurring on
communications tools such as mailing list and chat channels (i.e., Slack or
Mattermost) and activities around documentation tools such as wikis. The
community governance structure and rules (Who makes decisions? How do
participants make their voices heard?) is also a critical aspect to understand
to provide a complete picture of OSS communities (De Noni et al., 2011).
Conclusion
The
automated evaluation of OSS communities using trace data is a promising area of
development, and existing tools can be used in the context of a research
project. These tools could also be used in combination with other evaluation
methods to inform decision making.
The
detection of community smells rather than community types seems more promising
since it points out problems in the community and can help libraries make
strategic decisions, whether it is to choose a specific OSS over another or to
get involved in a community to try to address its problems (RQ3).
Community
smells can be identified with csDetector, which was able to detect five widely
spread smells in the SC-OSS communities targeted in this paper. The community
smells identified when we evaluated SC-OSS with csDetector suggest that there
may be inefficient knowledge sharing and weak collaboration practices that may
lead to few opportunities for onboarding newcomers, in turn limiting the
generation of new ideas (RQ1). csDetector cannot be considered as ready-to-use
software; it is more akin to an open-source research prototype, with limited
support. It has a major constraint given that it can analyze only one branch of
a GitHub repository, resulting in only a partial analysis of a community’s
activities if the OSS is on multiple branches (RQ2). In this regard, a project
like CHAOSS may be more promising. Our paper shows that csDetector can be used
as an experimental software by library staff to evaluate SC-OSS communities. We
recommend that library staff continue to monitor developments in this area to
assess OSS communities as the tools become easier to use.
To
assure long term development and flourishment of SC-OSS communities, libraries
must participate in their communities, either by contributing code or through
non-programming activities. Member participation, especially engagement, is
vital to OSS communities' sustainability.
Simple
awareness of common types of social and organizational dysfunctions in SC-OSS
can help us understand what conditions are needed for software sustainability.
The concept of “community smells” can, at a very minimum, provide us with a
vocabulary for diagnosing dysfunctional dynamics and point us toward remedies.
Libraries, along with other cultural and scientific heritage institutions, have
the It Takes a Village project (Arp
& Forbes, 2018), a collection of best practices and tools for supporting
the sustainability of OSS used in these sectors. While remedies to community
smells are not explicitly covered in the It
Takes a Village guidebook, it offers information on aspects such as how to
increase the number of contributors, which may address “truck factor,” or the
concentration of work among one or few people, under “Resources.” In the
“Community Engagement” section, it provides help on formulating a
communications and engagement strategy/plan, which may address community smells
such as “black-cloud effect” and “radio silence.”
Without
strategic support from libraries and library staff, any open scholarly
communication infrastructure will remain an ideal that may not be reached. OSS
communities are dynamic ecosystems and interactions can change with the flow of
people leaving or onboarding it. csDetector, and similar tools, open a
completely new dimension of OSS communities' characteristics to libraries.
Interactions and communications problems, such as community smells, can lead to
social debt, which in its turn will generate technical debt and, ultimately,
jeopardize the sustainability of the project.
Author Contributions
Pierre
Lasou: Conceptualization,
Data curation, Formal analysis, Investigation, Methodology, Project
administration, Writing - original draft Tomasz Neugebauer:
Conceptualization, Data curation, Formal analysis, Investigation, Methodology,
Resources, Software, Writing - original draft Pamela
Carson: Conceptualization, Writing - original draft, Writing - review &
editing
Acknowledgements
Thank
you to Francisco Berrizbeitia for his insights on machine learning.
References
Almarimi, N., Ouni, A., Chouchen, M., &
Mkaouer, M. W. (2021). csDetector: An open source
tool for community smells detection. In D. Spinellis, G. Gousios, M. Chechik,
& M. Di Penta (Eds.), ESEC/FSE 2021: Proceedings of the 29th ACM Joint
Meeting on European Software Engineering Conference and Symposium on the
Foundations of Software Engineering,1560–1564. https://doi.org/10.1145/3468264.3473121
Almarimi, N., Ouni, A., Chouchen, M.,
& Mkaouer, M. W. (2023). Improving the detection of
community smells through socio-technical and sentiment analysis. Journal of Software: Evolution and Process,
35(6), Article e2505. https://doi.org/10.1002/smr.2505
Almarimi, N., Ouni,
A., & Mkaouer, M. W. (2020). Learning
to detect community smells in open source software
projects. Knowledge-Based Systems, 204, Article 106201. https://doi.org/10.1016/j.knosys.2020.106201
Aman, H., Burhandenny, A. E., Amasaki, S.,
Yokogawa, T., & Kawahara, M. (2017). A health index of open source projects focusing on Pareto distribution
of developer's contribution. The 8th IEEE International Workshop on
Empirical Software Engineering in Practice, 29–34. https://doi.org/10.1109/IWESEP.2017.14
Andrade, S., & Saraiva, F. (2017).
Principled evaluation of strengths and weaknesses in FLOSS communities: A
systematic mixed methods maturity model approach. In F. Balaguer, R. Di Cosmo,
A. Garrido, F. Kon, G. Robles, & S. Zacchiroli (Eds.), Open source systems: Towards robust
practices: 13th IFIP WG 2.13 International Conference, OSS 2017, Proceedings,
34–46. https://doi.org/10.1007/978-3-319-57735-7
Arp, L. G., & Forbes, M. (2018). It
takes a village: Open source software
sustainability. LYRASIS. https://itav.lyrasis.org/guidebook/
Askey,
D. (2008). We love open source software. No, you
can’t have our code. Code4Lib, 5. https://journal.code4lib.org/articles/527
Avelino, G., Passos, L., Hora, A., & Valente, M. T. (2016). A
novel approach for estimating truck factors. 2016 IEEE 24th International
Conference on Program Comprehension (ICPC), 1–10. https://doi.org/10.1109/ICPC.2016.7503718
Baker,
S. (2020). Assessing open source journal management
software. Journal of Electronic Publishing, 23(1). https://doi.org/10.3998/3336451.0023.101
Barnes,
M., Bell, E., Cole, G., Fry, J., Gatti, R., & Stone, G. (2022). WP7 scoping report on archiving and
preserving OA monographs (1.0). Zenodo. https://doi.org/10.5281/zenodo.6725309
Bastian, M., Heymann, S., Jacomy, M. (2009).
Gephi: An open source software for exploring and
manipulating networks. International AAAI Conference on Weblogs and Social
Media. https://gephi.org/users/publications/
Bettenburg,
N., & Hassan, A. E. (2010). Studying the impact of social structures on
software quality. 2010 IEEE 18th
International Conference on Program Comprehension, pp. 124-133. https://doi.org/10.1109/ICPC.2010.46
Betz, S., Nason, M., & Uhl, E. (2023). Library publishing and hosting in Canada - Institutional responses to a
2022 questionnaire (Version 2). Borealis. https://doi.org/10.5683/SP3/SDFZUO
Bilder, G., Lin, J., & Neylon, C. (2020). The principles of open scholarly infrastructure. Retrieved on
August 21, 2024, from https://doi.org/10.24343/C34W2H
Breeding, M. (2017). Kuali OLE (defunct). Library Technology Reports, 53(6), 25–26. https://journals.ala.org/index.php/ltr/article/view/6407/8456
Caballero-Espinosa, E., Carver, J. C., & Stowers, K. (2023).
Community smells–the sources of social debt: A systematic literature review. Information and Software Technology, 153, 1–25.
https://doi.org/10.1016/j.infsof.2022.107078
Cánovas Izquierdo, J. L., & Cabot, J.
(2022). On the analysis of non-coding roles in open
source development. Empirical Software Engineering, 27, 1–32. https://doi.org/10.1007/s10664-021-10061-x
CARL Open Repositories Working Group (2022). Inventory of Canadian repository platforms. Federated Research Data
Repository. https://doi.org/10.20383/102.0538
Cataldo,
M., Herbsleb, J. D., & Carley, K. M. (2008). Socio-technical congruence: A
framework for assessing the impact of technical and work dependencies on
software development productivity. Proceedings of the Second ACM-IEEE
International Symposium on Empirical Software Engineering and Measurement,
2–11. https://doi.org/10.1145/1414004.1414008
Catolino, G., Palomba, F.,
Tamburri, D. A., Serebrenik, A., & Ferrucci, F. (2020). Refactoring community smells in the wild: The
practitioner’s field manual. 2020 IEEE/ACM 42nd International Conference on
Software Engineering: Software Engineering in Society (ICSE-SEIS), 25–34. https://doi.org/10.1145/3377815.3381380
Çetin,
H. A., & Tüzün, E. (2022). Analyzing developer contributions using artifact
traceability graphs. Empirical Software
Engineering, 27, Article 77. https://doi.org/10.1007/s10664-022-10129-2
CHAOSS (n. d.-a). About
CHAOSS. Retrieved on August 21, 2024, from https://chaoss.community/about-chaoss/
CHAOSS (n. d. -b). CHAOSS
software. Retrieved on August 21, 2024, from https://chaoss.community/software/
CHAOSS (n. d.-c). Metrics
and metrics models. Retrieved on August 21, 2024, from https://chaoss.community/kb-metrics-and-metrics-models/
CHAOSS (n. d.-d). Practitioner
guide: Introduction – things to think about when interpreting metrics. Retrieved
on August 21, 2024, from https://chaoss.community/practitioner-guide-introduction/
CHAOSS (n. d.-e). Project
engagement. Retrieved on August 21, 2024, from https://chaoss.community/kb/metrics-model-project-engagement/
Chudnov, D. (1999). Open
source software: The future of library systems? Library Journal, 124(13),
40–43.
Collister, L. (2023, December 8). Introducing Infra Finder. Invest in Open Infrastructure. Retrieved
on April 3, 2024, from https://investinopen.org/blog/blog-introducing-infra-finder/
Colt, J. (2023). An introduction to using
metrics to assess the health and sustainability of library open source software projects. Code4Lib, 57. https://journal.code4lib.org/articles/17514
Conway, M. E. (1968). How do committees invent? Datamation, 14(5), 28–31.
Corrado,
E. M. (2005). The importance of open access, open source, and open standards
for libraries. Issues in Science and
Technology Librarianship, 42. https://doi.org/10.5062/F42F7KD8
Corrado,
E. M. (2021). Revisiting the importance of open access, open source, and open
standards for libraries. Technical
Services Quarterly, 38(3), 282–292. https://doi.org/10.1080/07317131.2021.1934312
Corrado,
E. M. (2023). Proprietary and open source software
systems in libraries: A few considerations. Technical Services Quarterly, 40(3),
202–209. https://doi.org/10.1080/07317131.2023.2226434
Cosentino,
V., Izquierdo, J. L. C., & Cabot, J. (2015). Assessing the bus factor of
Git repositories. 2015 IEEE 22nd
International Conference on Software Analysis, Evolution, and Reengineering
(SANER), 499–503. https://doi.org/10.1109/SANER.2015.7081864
Cousijn, H., Hendricks, G., & Meadows, A. (2021). Why openness
makes research infrastructure resilient. Learned
Publishing, 34(1), 71–75. https://doi.org/10.1002/leap.1361
De Noni, I., Ganzaroli, A., & Orsi, L.
(2011). The governance of open source software
communities: An exploratory analysis. Journal of Law and Governance, 6(1),
1–18. https://vulj.vu.edu.au/index.php/jbsge/article/view/195/
De Stefano, M., Iannone, E., Pecorelli,
F., & Tamburri, D. A. (2022). Impacts of software
community patterns on process and product: An empirical study. Science of Computer Programming, 214,
Article 102731. https://doi.org/10.1016/j.scico.2021.102731
De Stefano, M., Pecorelli, F., Tamburri,
D. A., Palomba, F., & De Lucia, A. (2020). Splicing
community patterns and smells: A preliminary study. ICSEW ’20: Proceedings of the IEEE/ACM 42nd International Conference
on Software Engineering Workshops, 703–710. https://doi.org/10.1145/3387940.3392204
Dey, S., & Woods, W. (2022). LAGOON: An
analysis tool for open source communities. MSR ’22:
Proceedings of the 19th International Conference on Mining Software
Repositories (MSR), 717–721. https://doi.org/10.1145/3524842.3528504
Ducheneaut, N. (2005). Socialization in an open source software community: A socio-technical
analysis. Computer Supported Cooperative Work, 14, 323–368. https://doi.org/10.1007/s10606-005-9000-1
Engard, N. C. (2010). Practical open source software for libraries. Chandos
Publishing.
Ferreira, M., Mombach, T., Valente, M. T., & Ferreira, K.
(2019). Algorithms for estimating truck factors: A comparative study. Software Quality Journal, 27, 1583–1617. https://doi.org/10.1007/s11219-019-09457-2
Geiger,
R. S., & Ribes, D. (2011). Trace ethnography: Following coordination
through documentary practices. 44th
Hawaii International Conference on System Sciences, 1–10. https://doi.org/10.1109/HICSS.2011.455
Germonprez,
M., Link, G. J. P., Lumbard, K., & Goggins, S. (2018). Eight observations
and 24 research questions about open source
projects: Illuminating new realities. In K. Karahalios, A. Monroy-Hernández, A.
Lampinen, & G. Fitzpatrick (Eds.), Proceedings of the ACM on
Human-Computer Interaction, 2(CSCW), 1–22. https://doi.org/10.1145/3274326
Goggins, S. P., Germonprez,
M., & Lumbard, K. (2021a). Making open source project health transparent. Computer, 54(8), 104–111. https://doi.org/10.1109/MC.2021.3084015
Goggins, S., Lumbard,
K., & Germonprez, M. (2021b). Open source community health: Analytical metrics and their
corresponding narratives. IEEE/ACM 4th International Workshop on Software
Health in Projects, Ecosystems and Communities (SoHeal), 25–33. https://doi.org/10.1109/SoHeal52568.2021.00010
Goggins, S. P., Mascaro, C., &
Valetto, G. (2013). Group informatics: A methodological
approach and ontology for sociotechnical group research. Journal of the American Society for Information Science and Technology,
64(3), 516–539. https://doi.org/10.1002/asi.22802
Gonzalez-Barahona, J. M., Izquierdo-Cortázar, D., & Robles, G.
(2022). Software development metrics with a purpose. Computer, 55(4), 66–73. https://doi.org/10.1109/MC.2022.3145680
Government of Canada. (2021). Digital
nations charter. Retrieved on August 21, 2024 from https://www.canada.ca/en/government/system/digital-government/improving-digital-services/digital-nations-charter.html
Gray, K. L. (2023). Breathing life into Archon: A case study in
working with an unsupported system. Code4Lib, 57. https://journal.code4lib.org/articles/17509
Guimont, C., Vaughn, M., & Ball, C. E.
(2023). Finding the right platform: A crosswalk of academy-owned and
open-source digital publishing platforms. Knowledge
Commons. https://doi.org/10.17613/z27e-0z11
Jabrayilzade, E., Evtikhiev, M., Tüzün, E., & Kovalenko, V.
(2022). Bus factor in practice. ICSE-SEIP
'22: Proceedings of the 44th International Conference on Software Engineering:
Software Engineering in Practice, 97–106.
https://doi.org/10.1145/3510457.3513082
Joblin, M., Mauerer, W., Apel, S., Siegmund, J., &
Riehle, D. (2015). From developer networks to verified communities: A
fine-grained approach. 2015 IEEE/ACM 37th
IEEE International Conference on Software Engineering, 563–573. https://doi.org/10.1109/ICSE.2015.73
Klimov,
E., Ahmed, M. U., Sviridov, N., Derakhshanfar, P., Tüzün, E., & Kovalenko,
V. (2023). Bus Factor Explorer. 2023 38th
IEEE/ACM International Conference on Automated Software Engineering (ASE), 2018–2021. https://doi.org/10.1109/ASE56229.2023.00015
Kwan, I., Cataldo, M., & Damian, D. (2012). Conway’s law
revisited: The evidence for a task-based perspective. IEEE Software, 29(1), 90–93. https://doi.org/10.1109/MS.2012.3
Labianca, G., & Brass, D. J. (2006). Exploring the social
ledger: Negative relationships and negative asymmetry in social networks in
organizations. The Academy of Management
Review, 31(3), 593–614. https://doi.org/10.5465/amr.2006.21318920
Lasou, P., & Neugebauer, T. (2024a). Community patterns of scholarly
communication open source software generated by
YOSHI [dataset]. Borealis. https://doi.org/10.5683/SP3/4MEDXO
Lasou, P., & Neugebauer, T. (2024b).
Community smells detection on scholarly communication open
source software using csDetector [dataset]. Borealis. https://doi.org/10.5683/SP3/34MYPI
Lease
Morgan, E. (2002). Possibilities for open source
software in libraries. Information Technology and Libraries, 21(1),
12–15.
Lewis,
D. W. (2017). The 2.5% commitment
[working paper]. Retrieved on August
21, 2024, from http://doi.org/10.7912/C2JD29
Linåker, J.,
Papatheocharous, E., & Olsson, T. (2022). How to characterize the health of
an open source software project? A snowball
literature review of an emerging practice. OpenSym 2022, Proceedings of the
18th International Symposium on Open Collaboration, 1–12.
https://doi.org/10.1145/3555051.3555067
Link,
G. J. P., & Germonprez, M. (2018). Assessing open
source project health. 24th Americas Conference on
Information Systems 2018. AMCIS Proceedings 5, 1–5.
Lumbard, K.,
Germonprez, M., & Goggins, S. (2024). An empirical investigation of social
comparison and open source community health. Information
Systems Journal, 34(2), 499–532. https://doi.org/10.1111/isj.12485
Martin, S. (2018). The 2.5%
commitment: 2.5% of whom? [Presentation]. Retrieved on August 21, 2024,
from https://hdl.handle.net/2022/22548
Martin, V. (2022). The
complete guide to open scholarship. Bloomsbury Publishing.
McClean, K., Greer, D., & Jurek-Loughrey,
A. (2021). Social network analysis of open source
software: A review and categorisation. Information and Software Technology,
130, Article 106442. https://doi.org/10.1016/j.infsof.2020.106442
McIlwain, J. R. (2023). Towards an open source-first praxis in
libraries. Information Technology and
Libraries, 42(4), 1–21. https://doi.org/10.5860/ital.v42i4.16025
Nagappan,
N., Murphy, B., & Basili, V. (2008). The influence of organizational
structure on software quality: An empirical case study. ICSE ’08: Proceedings of the 30th International Conference
on Software Engineering, 521–530. https://doi.org/10.1145/1368088.1368160
Nelson,
A. (2022). Ensuring free, immediate, and
equitable access to federally funded research. [Memorandum]. Office of
Science and Technology Policy, Washington, D.C. Retrieved on August 21, 2024,
from https://rosap.ntl.bts.gov/view/dot/65799/dot_65799_DS1.pdf
Nuri22.
(2021). csDetector [Source Code]. https://github.com/Nuri22/csDetector
Onoue, S., Hata, H., Monden, A., &
Matsumoto, K. (2016). Investigating and projecting population structures in open source software projects: A case study of
projects in GitHub. IEICE Transactions on Information and Systems, E99.D(5),
1304–1315. https://doi.org/10.1587/transinf.2015EDP7363
Open
Society Institute. (2004). Guide to
institutional repository software (3rd ed.) [PDF]. https://www.budapestopenaccessinitiative.org/resources/guide-to-institutional-repository-software/
OpenDOAR. (2024, May). OpenDOAR
statistics. Retrieved on May 19, 2024, from https://v2.sherpa.ac.uk/view/repository_visualisations/1.html
Oriol, M., Müller,
C., Marco, J., Fernandez, P., Franch, X., & Ruiz-Cortés, A. (2023). Comprehensive assessment of open source software ecosystem health. Internet of
Things, 22, Article 100808. https://doi.org/10.1016/j.iot.2023.100808
Palomba, F., Tamburri, D. A.,
Serebrenik, A., Zaidman, A., Fontana, F. A., & Oliveto, R. (2018). How do
community smells influence code smells? Proceedings
of the 40th International Conference on Software Engineering, 240–241. https://doi.org/10.1145/3183440.3194950
Palomba, F., & Tamburri, D. A. (2021). Predicting
the emergence of community smells using socio-technical metrics: A
machine-learning approach. The Journal of
Systems and Software, 171, Article 110847. https://doi.org/10.1016/j.jss.2020.110847
Paradis, C., & Kazman, R. (2022). Building the MSR tool
Kaiaulu: Design principles and experiences. In P. Scandurra, M. Galster, R.
Mirandola, & D. Weyns (Eds.), Software
Architecture. ECSA 2021. Lecture Notes in Computer Science, 107–129. https://doi.org/10.1007/978-3-031-15116-3_6
Paradis, C., Kazman, R., & Tamburri, D. (2024). Analyzing the
Tower of Babel with Kaiaulu. The Journal
of Systems & Software, 210, Article 111967. https://doi.org/10.1016/j.jss.2024.111967
Qiu,
H. S., Lieb, A., Chou, J., Carneal, M., Mok, J., Amspoker, E., Vasilescu, B.,
& Dabbish, L. (2023). Climate Coach: A dashboard for open-source
maintainers to overview community dynamics. Proceedings
of the 2023 CHI Conference on Human Factors in Computing Systems. https://doi.org/10.1145/3544548.3581317
Raman, N., Cao, M., Tsvetkov, Y., Kästner, C., & Vasilescu, B.
(2020). Stress and burnout in open source: Toward finding, understanding, and
mitigating unhealthy interactions. ICSE-NIER
’20: Proceedings of the IEEE/ACM 42nd International Conference on Software
Engineering: New Ideas and Emerging Results,57–60. https://doi.org/10.1145/3377816.3381732
Rhyno, A. (2004). Using open source systems for digital libraries.
Libraries Unlimited.
Ricca,
F., Marchetto, A., & Torchiano, M. (2011). On the difficulty of computing
the truck factor. In D. Caivano, M. Oivo, M. T. Baldassarre, & G. Visaggio
(Eds.), Product-focused software process
improvement (Vol. 6759, p. 337-351). Springer Berlin Heidelberg. https://doi.org/10.1007/978-3-642-21843-9_26
Rosen, H., & Grogg, J. (2021, August). LYRASIS
2021 open source software survey report: Understanding
the landscape of open source software in American
libraries. LYRASIS. https://doi.org/10.48609/n35f-5828
Singh,
V. (2020). Applying participatory action approach to integrating professional
librarians into open source software communities. Journal
of Librarianship and Information Science, 52(2), 541–548. https://doi.org/10.1177/0961000619836724
Skog,
A. (2023). Strategies for collaboration: ICOLC Open Collaboration in Library
Consortia recommendations. Journal of Library
Administration, 63(1), 101–110. https://doi.org/10.1080/01930826.2022.2146443
Tamburri, D. A., Blincoe, K., Palomba, F., & Kazman, F.
(2020). “The canary in the coal mine…” A cautionary tale from the decline of
SourceForge. Software: Practice and
Experience, 50(10), 1930–1951. https://doi.org/10.1002/spe.2874
Tamburri, D. A., Di Nucci, D., Di Giacomo, L., & Palomba, F.
(2019b) Omniscient DevOps analytics. In J. M. Bruel, M. Mazzara, B. Meyer (Eds.), Software Engineering Aspects of Continuous
Development and New Paradigms of Software Production and Deployment: First
International Workshop, DEVOPS 2018, 48–59. https://doi.org/10.1007/978-3-030-06019-0_4
Tamburri, D., Kazman, R., & Fahimi, H. (2023). On the
relationship between organizational structure patterns and architecture in Agile teams. IEEE Transactions on Software Engineering,
49(1), 325–347. https://doi.org/10.1109/TSE.2022.3150415
Tamburri, D. A., Kazman, R., Van Den Heuvel, W-J. (2019a).
Splicing community and software architecture smells in Agile teams: An
industrial study. In T. X. Bui (Ed.), Proceedings
of the 52nd Annual Hawaii International Conference on System Sciences, 7037–7047.
https://hdl.handle.net/10125/60140
Tamburri, D. A., Kruchten, P., Lago, P., & van Vliet, H.
(2013a). What is social debt in software engineering? 2013 6th International Workshop on Cooperative and Human Aspects of
Software Engineering (CHASE), 93–96. https://doi.org/10.1109/CHASE.2013.6614739
Tamburri, D. A., Kruchten, P., Lago, P., & van Vliet, H.
(2015). Social debt in software engineering: Insights from industry. Journal of Internet Services and
Applications, 6, 1–17. https://doi.org/10.1186/s13174-015-0024-6
Tamburri, D. A., Lago, P., & van Vliet, H. (2013b).
Organizational social structures for software engineering. ACM Computing Surveys, 46(1), 1–35. https://doi.org/10.1145/2522968.2522971
Tamburri, D. A., Palomba, F., & Kazman, R. (2021a). Exploring
community smells in open-source: An automated approach. IEEE Transactions on Software Engineering, 47(3), 630–652. https://doi.org/10.1109/TSE.2019.2901490
Tamburri, D. A., Palomba, F., & Kazman, R. (2021b). Success
and failure in software engineering: A followup systematic literature review. IEEE Transactions on Engineering Management,
68(2), 599–611. https://doi.org/10.1109/TEM.2020.2976642
Tamburri, D. A., Palomba, F., Serebrenik, A., & Zaidman, A.
(2019c). Discovering community patterns in open-source: A systematic approach
and its evaluation. Empirical Software
Engineering, 24, 1369–1417. https://doi.org/10.1007/s10664-018-9659-9
Tamburri,
D. A. (2024). YOSHI 2 [Source Code]. https://github.com/maelstromdat/YOSHI/tree/master/yoshi2
Tatham, E. (2010, November 23). Roles in open source projects. OSS Watch. http://oss-watch.ac.uk/resources/rolesinopensource
Thacker, J. C., Knutson, C. D., &
Dehmlow, M. (2014, July). Open source
software. SPEC Kit 340. Association of Research Libraries.
Thacker, C., & Knutson, C. (2015).
Barriers to initiation of open source software
projects in libraries. Code4Lib, 29. https://journal.code4lib.org/articles/10665
Traag, V.
A., Krings, G., & Van Dooren, P. (2013). Significant scales in community
structure. Scientific Reports, 3,
Article 2930. https://doi.org/10.1038/srep02930
van Meijel, J. (2021). On the relations between community patterns
and smells in open-source: A taxonomic and empirical analysis [Master’s thesis,
Eindhoven University of Technology]. https://research.tue.nl/en/studentTheses/on-the-relations-between-community-patterns-and-smells-in-open-so
Voria, G., Pentangelo, V., Della Porta,
A., Lambiase, S., Catolino, G., Palomba, F., & Ferrucci, F. (2022). Community smell detection and refactoring in SLACK: The CADOCS
project. Proceedings 2022 IEEE
International Conference on Software Maintenance and Evolution (ICSME), 469–473. https://doi.org/10.1109/ICSME55016.2022.00061
Wenger, E., McDermott, R. A., & Snyder, W. (2002). Cultivating communities of practice: A guide
to managing knowledge. Harvard Business School Publishing.
Yang, R., Yang, Y., Shen, Y., Sun, H. (2023). An approach to
assessing the health of opensource software ecosystems. In Y. Sun, T. Lu, Y.
Guo, X. Song, H. Fan, D. Liu, L. Gao, & B. Du. (Eds.), Computer Supported Cooperative Work and Social Computing. 17th CCF
Conference, ChineseCSCW 2022. Communications in Computer and Information
Science, 465–480. https://doi.org/10.1007/978-981-99-2356-4_37
